Highlights at a glance
- ✓Category: PTTA Panels
- ✓Made in Sco 36 Sector 26Madhya Marg Chandigarh, CH, India
- ✓Certified: ISO 9001-2015, ISO 9001, ISO 14001
Description
These panels comply to IEC 60439 code. We have certification from CPRI India for its short circuit, temp rise and IP test.
PCC Panels
ENCLOSURE – CRCA 1.6 MM/ 2 MM
IP- 42/54/55
Form – 2B/3B/4B
Gasketing – Liquid PU Gasket
Busbar System – Aluminum / CU
Surface Coating – Phosphated / Powder Coated
Type Tests – Short Circuit Withstand upto 70 KA for 1 sec confirming to IS8623 (Part 1-1993)
Temperature Rise Test Confirming to IS8623 ( Part1-1993) IP Test 54/55
Routine Tests – High Voltage Test
Insulation Resistance Test
Continuity & Functional Tests
Interleaved Main Busbar System as Part of special offerings
All live parts are shrouded for safe operations
QR Code Enabled
MCC Panel
ENCLOSURE – CRCA 1.6 MM/ 2 MM
IP- 42/54/55
Form – 2B/3B/4B
Gasketing – Liquid PU Gasket
Busbar System – Aluminum / CU
Surface Coating – Phosphated / Powder Coated
Type Tests – Short Circuit Withstand upto 70 KA for Isec confirming to IS8623 (Part1-1993)
Temperature Rise Test Confirming to IS8623 ( Part1-1993) IP Test 54/55
Routine Tests – High Voltage Test
Insulation Resistance Test
Continuity & Functional Tests
Interleaved Main Busbar System as Part of special offerings
All live parts are shrouded for safe operations
QR Code Enabled
Meter Boards
Specially designed for right aesthetics and long-lasting life cycle.
Extensive usage in housing and commercial complexes.
Electrical meter housed inside the panel with adequate visibility of meter data without opening/tempering of the doors.
Provision for sealable* doors.
Suitable thickness of material of Galvanised steel iron or CRCA sheet steel.
Surface finish powder coated with UV resistant for outdoor application.
Special hardware for outdoor application.
View windows of specially treated glass for right visibility and longer life.
QR Code Enabled
*Optional on request

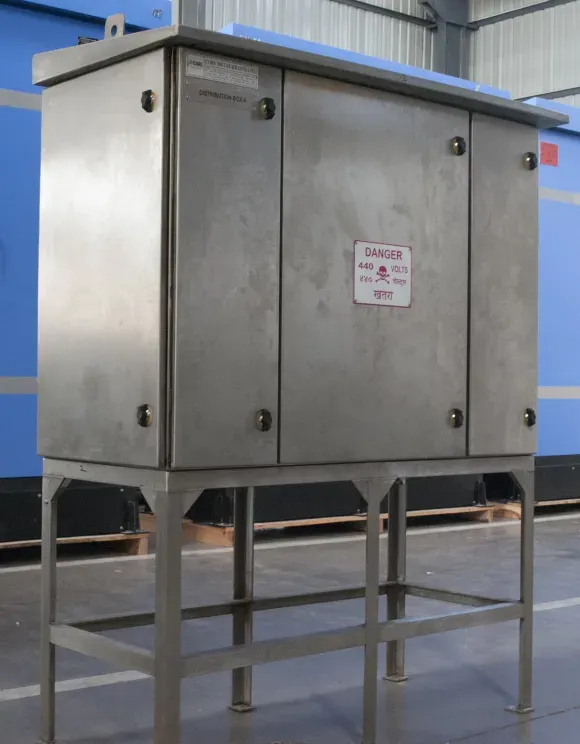

SS Enclosures
Material of construction – different grade of Stainless steel
Application- Chemical industry, Pharmaceutical, Process industry, Sewage and water treatment plants, special outdoor installations.
Welded construction with proper surface cleaning and polishing
QR Code Enabled

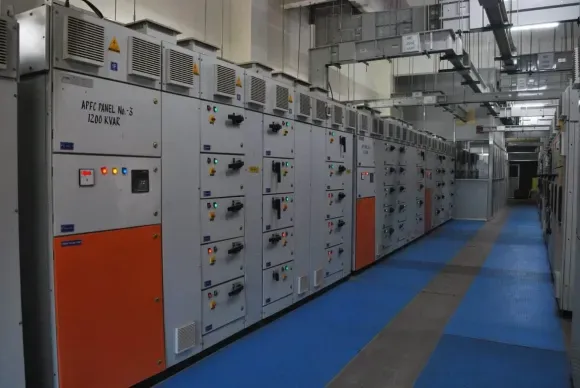

APFC Panel
Power Factor Control Panels
Active Harmonic Filters (AHF)
QR Code Enabled
Key attributes
Certificates
ISO 9001-2015
ISO 9001
ISO 14001
ISO 45001
IEC code 61439
IEC 61439 (Part 1 & 2)
IEC 61921
ROHS compliant
IEC 60439
IS8623 (Part 1-1993)
IEC 62271-100
IEC 62271-102
IEC 62271-200
IS 13947-1&3
IEC 60947-1&3
IS/IEC 60947-3
IS/IEC 60898-1:2002
IEC 62271-200
