Highlights at a glance
✓Category: Specialty Coatings
✓Made in B-5Shamboo Nagar Meerut, UP, India
✓Certified: ISO 9001:2015, CE Certified, Export Quality
About this item
Thermally diffused zinc layer for high-speed performance
Superior arc stability during cutting
High resistance to heat and wire breakage
Enhanced flushing efficiency in deep cuts
Extended spool life with minimal wire waste
Description

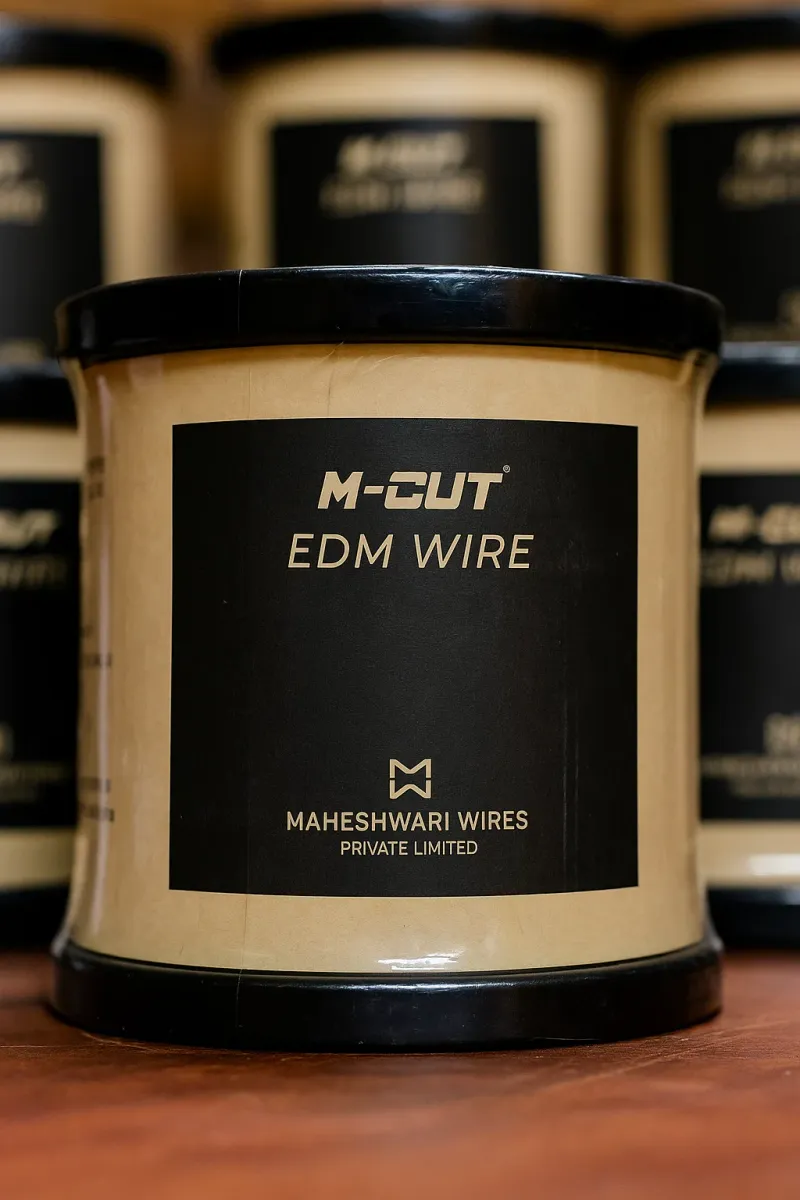

Diffused Wire is a high-performance EDM wire with a zinc coating that is thermally diffused into a brass substrate. This bonding enhances mechanical properties, enables higher cutting speeds, and ensures superior arc stability.
It is ideal for precision cutting in high-load and extended EDM operations where accuracy, durability, and surface finish are critical.
Technical Specifications
Base Material | Brass (CuZn37)
Coating | Zinc Diffused Layer
Coating Thickness | 2–5 μm
Diameter Range | 0.20 mm to 0.30 mm
Diameter Tolerance | ±0.002 mm
Tensile Strength | 900–1050 MPa
Elongation | ≥1.5%
Electrical Conductivity | ~22% IACS
Application Compatibility | Compatible with all major EDM machines
Advantages
Reduces wire consumption during long operations
Improves surface finish of the workpiece
Minimizes rework due to precise cutting
Suitable for complex geometries
Performs well in both oil and water-based dielectric fluids
Applications
High-speed EDM machining
Tool & die manufacturing
Precision automotive parts
Injection mold and die cavity creation
Key attributes
Category
Specialty Coatings
Place of origin
B-5Shamboo Nagar Meerut, UP, India
Certificates
ISO 9001:2015
CE Certified
Export Quality
RoHS Compliant
