Steel Saw Blade

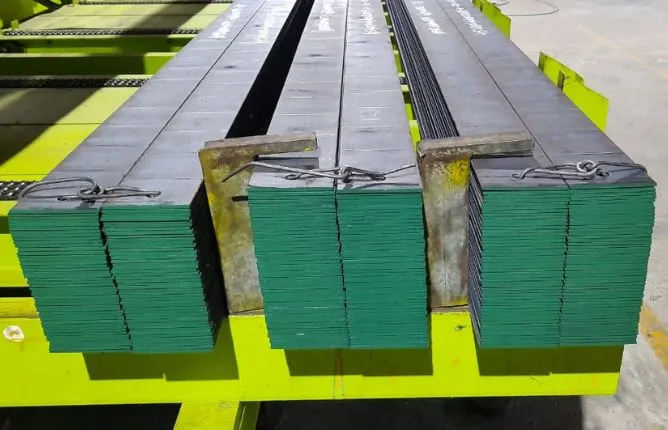

Grooved and streched SAW STEEL BLADES for sawing granite

The hot roller bars are produced in our own rolling mill in quality FE7O/OL and C.60 with a tensite strength of 990/aa0 kg/mm2

We guarantee the quality of the steel blade and the tensile strength shown in the orders and in the invoices according to UNI norms. The supplier will substitute the blades in case they are not as per the above mentioned warranties, but does not refund, even partially, for damages which might occure during the sawing process as thee damages could be caused by external elements not depending from the supplier.

- Hole diameter : 20 mm - Distance from center hole to the end of blade: 40 mm

- Height - Total Length - Length from center hole to center hole - Hole - Burn rate customer leverage advisor investor metrics. - Distance from center to end of the blade - Blade Thickness

Quality | Fe70/OL | Quality | C60 -- | -- | -- | -- C          Carbon | 0.58       0.61 | C          Carbon | 0.57       0.65 Mn         Manganese | 0.95       1.15 | Mn         Manganese | 0.95       1.15 Si          Silicon | 0.30 | Si          Silicon | 0.40 P          Phosphorus | 0.045 | P          Phosphorus | 0.045 S          Sulphur | 0.045 | S          Sulphur | 0.045 Cr          Chrome | 0.25 | Cr          Chrome | 0.40 Cu          Copper | 0.35 | Cu          Copper | 0.35 Ni          Nickel | 0.25 | Ni          Nickel | 0.40 Sn          Tin | 0.030 | Sn          Tin | 0.030

| | Fe70/OL | C60 | | --- | --- | --- | | | Min | Max | Min | Max | | --- | --- | --- | --- | --- | | Yield Stress | 750 | | 750 | | | Tensile Strength | 900 | 1100 | 900 | 1200 | | Stretch, Extension | Less of 10% | | Less of 10% | |

| Height | Thickness | | --- | --- | | 90 | | | 5 | | 100 | 4 | 4.5 | 5 | | 100 | | 5 | | | | 120 | 4 | 4.5 | 4.8 | 5.0 | | 130 | | 5 | | |
