Digital / Analog Bread Board Trainer

( DTK-01A ) - 10 TTL/CMOS Logic Level Inputs Switches, 10 LED Indicator output. - On board Logic Pulser, Logic Probe, Two nos. of BCD Seven Segment Display - On board 1660 tie points bread board. - 200Khz Sine, Square and Triangular generator, Fixed Clock generation - In built fixed DC Power Supply: +5V, ±12V, Variable DC supply of 0 to ±15V, - AC Power Supply of 18V-0-18V

( DTK-01C ) - 16 TTL/CMOS Logic Level Inputs Switches, 16 LED Indicator output. - On board Logic Pulser, Logic Probe, Two nos. of BCD Seven Segment Display - On board 1660 tie points bread board. - 1Mhz Sine, Square and Triangular generator, Fixed Clock generation - In built fixed DC Power Supply: +5V, ±12V, Variable DC supply of 0 to ±15V, - AC Power Supply of 18V-0-18V

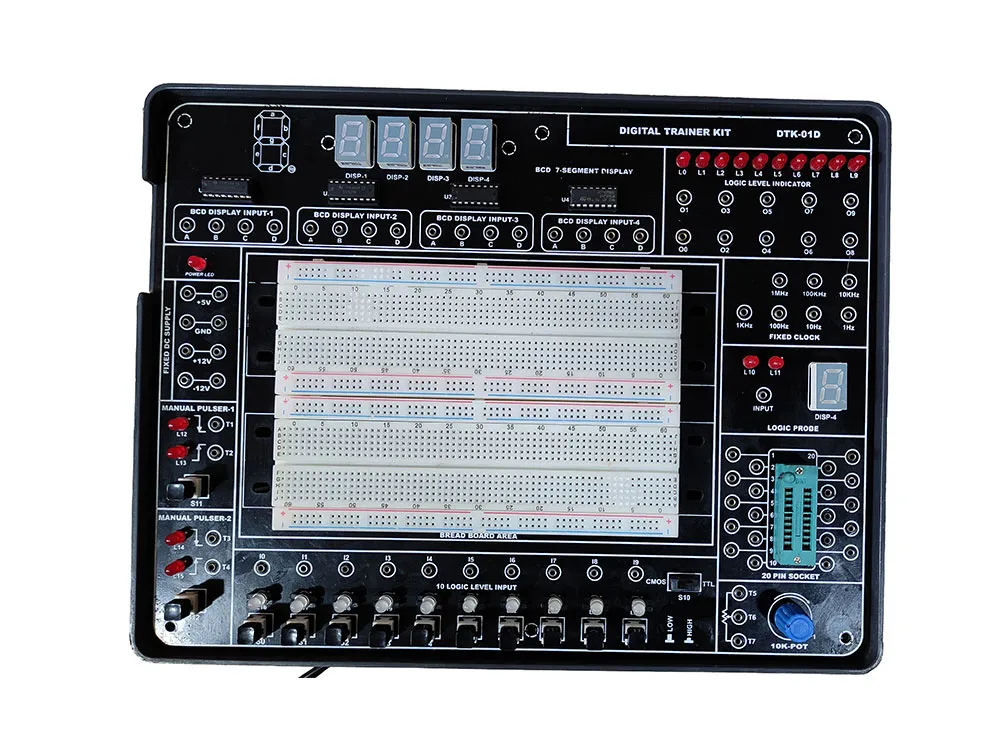

( DTK-01D ) - 10 TTL/CMOS Logic Level Inputs Switches, 10 LED Indicator for output. - On board Logic Pulser, Logic Probe, Four nos. of BCD Seven Segment Display - On board 1660 tie points bread board, Fixed Clock generation. - In built fixed DC Power Supply: +5V, ±12V

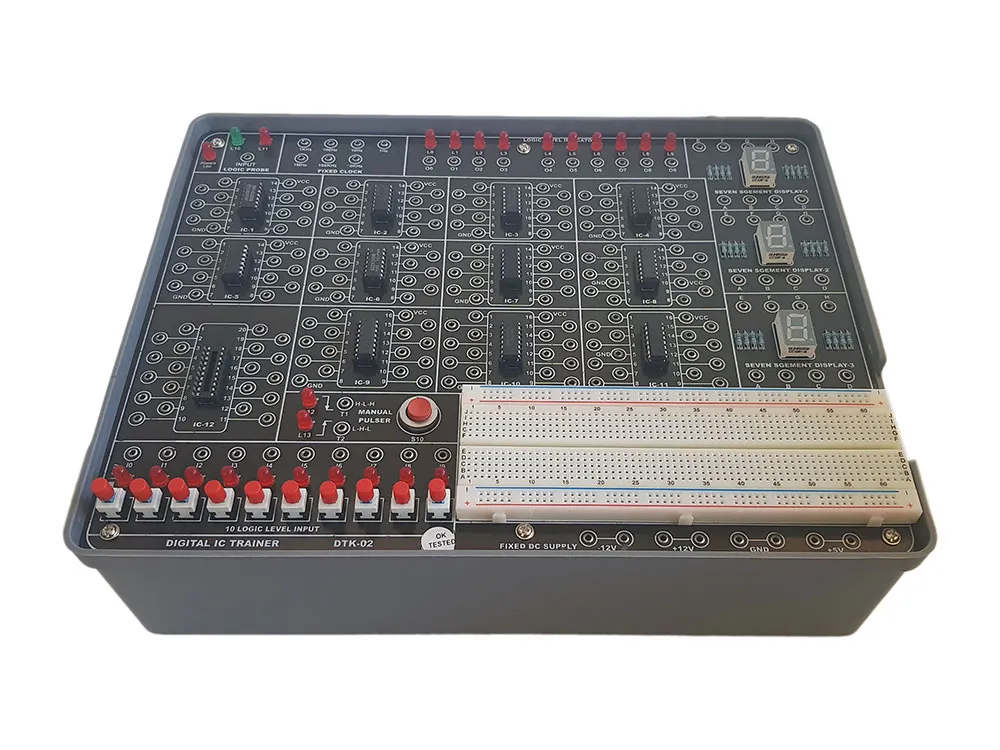

( DTK-02 ) - 10 TTL/CMOS Logic Level Inputs Switches, 10 LED Indicator for output. - On board Logic Pulser, Logic Probe, Three nos. of BCD Seven Segment Display - On board 830 tie point’s bread board, Fixed Clock generation. - One IC each of 7400, 7402, 7408, 7432, 7404, 7490, 74164, 7486, 7447 & Two Nos. of IC 74109 - In built fixed DC Power Supply: +5V, ±12V

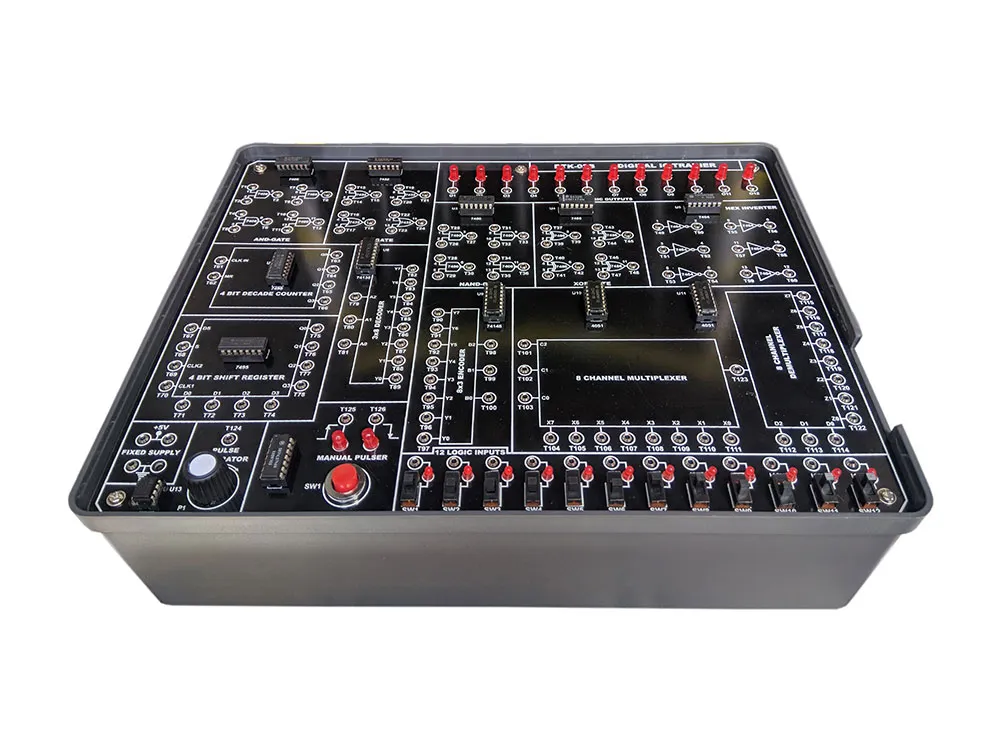

( DTK-02B ) - 12 TTL/CMOS Logic Level Inputs Switches, 12 LED Indicator for output. - Pulse generation of 1Hz to 20 KHz, Pulse Generator for Logic Low & High. - Four numbers of AND gate, OR gate, NAND gate, XOR gate, - Six numbers of Hex inverter gate, 3x8 Decoder & 8x3 Encoder, - 8 channel Multiplexer & Demultiplexer, 4 Bit decade counter, 4 bit Shift Register. - In built fixed DC Power Supply: +5V.

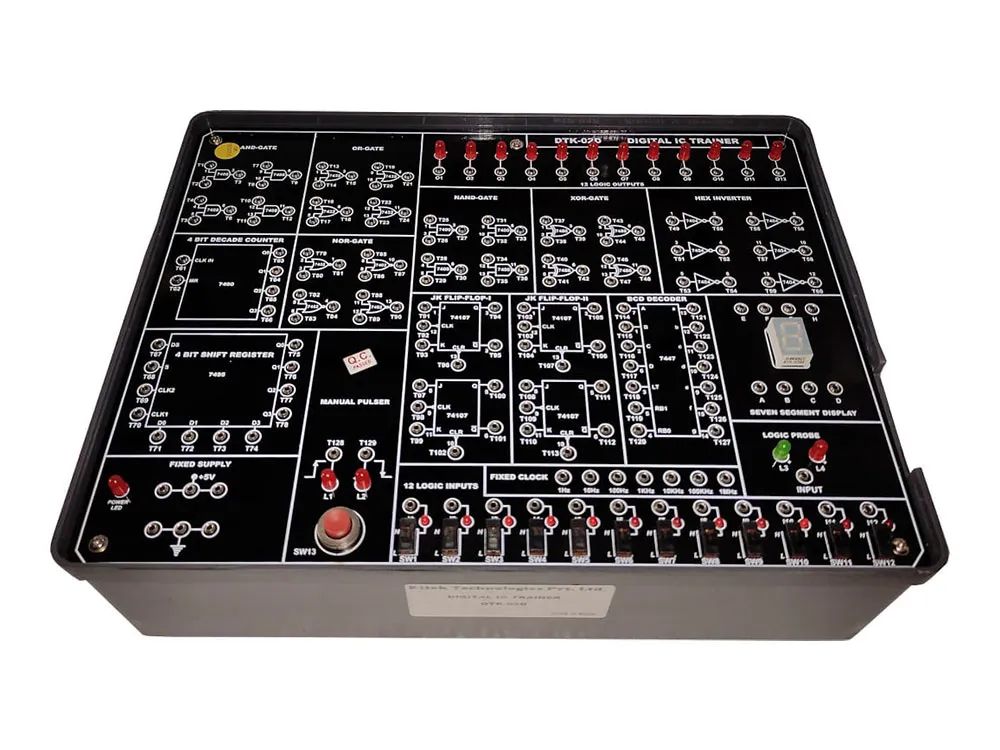

( DTK-02D ) - 16 TTL/CMOS Logic Level Inputs Switches, 16 LED Indicator for output. - Pulse generation of 1Hz to 20 KHz, Pulse Generator for Logic Low & High. - On Board 4 No’s of AND gate, OR gate, NAND gate, NOR gate, XOR gate & Hex Inverter. - On board 2 No’s of JK Flip –Flop using IC 74107 - On board BCD Decoder with Seven Segment Display using IC 7447/4511 - On board 4 Bit decade counter using IC 7490 - On Board 4 bit Shift Register using IC 7495 - In built fixed DC Power Supply: +5V.

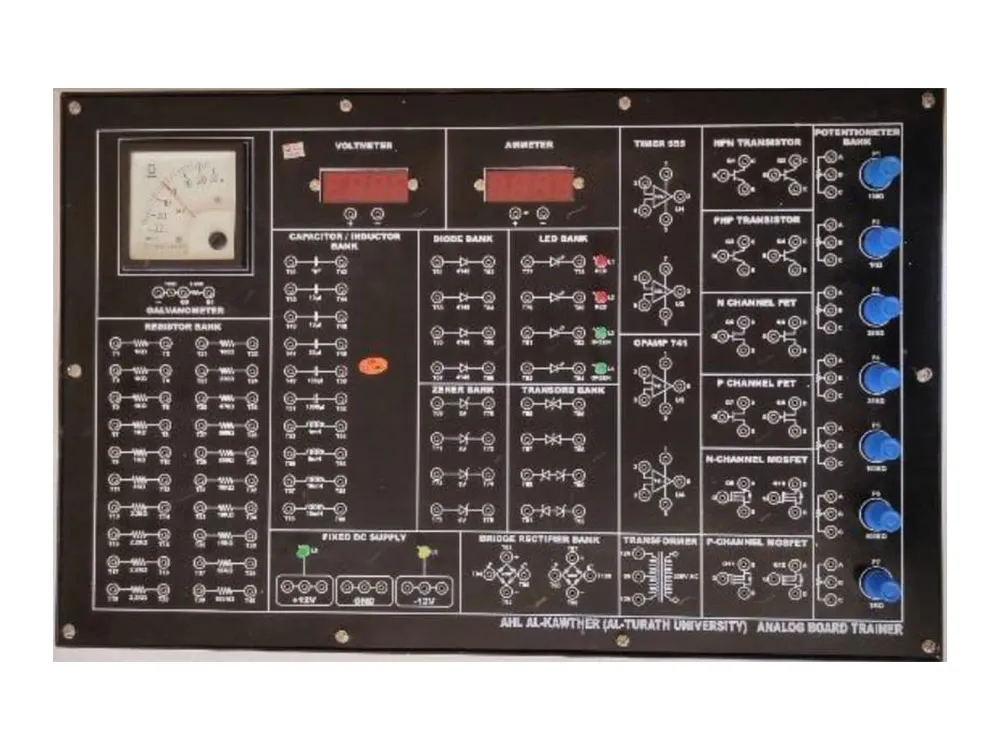

( DTK-02E ) - On board LINEAR IC’s like IC 555, IC 741x2 - On board Resistor Bank (20No’s), Capacitor Bank (6No’s), Inductor Bank (4No’s), - On board Diode 1N4148, Zener Diode, Red & Green LED, Transorb Bank, Bridge rectifier circuits, Transistors NPN & PNP type, JFET (P & N Type), MOSFET (P & N Type) - One DC Voltmeter 0-20V, One DC Ammeter 0-200mA, One (30-0-30) Galvanometer - On board 830 tie points bread board, 7 numbers of Potentiometers - In built fixed DC Power Supply: ±12V, - AC Power Supply of 12V-0-12V

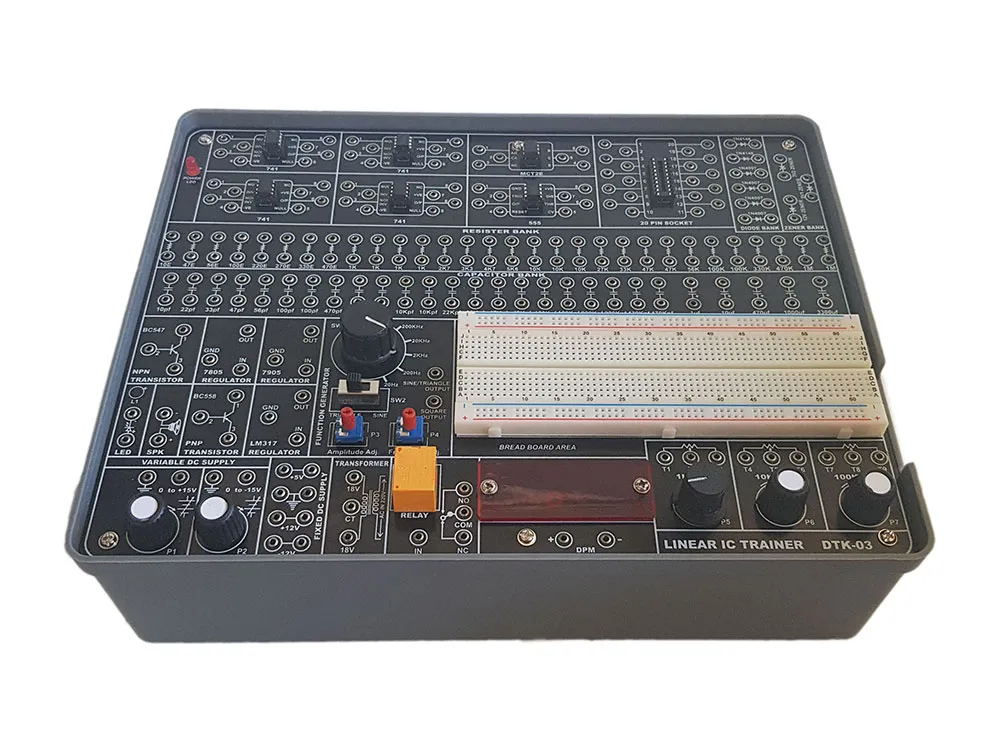

( DTK-03 ) - On board LINEAR IC’s like IC 555, IC 741x4, IC MCT2E. - On board Resistor Bank, Capacitor Bank, Voltage regulators 7805, 7905, 317 - On board Transistors NPN-BC547, PNP-BC558, - On board Diodes 1N 4007x4, Diode 1N4148x2 & Zener Diodes 3.2V, 5.1V, 12V. - On board 12V SPDT Relay, One 8ohm Speaker, One five mm LED. - On board 830 tie points bread board, 3 numbers of Potentiometers - 200Khz Sine, Square and Triangular generator - In built fixed DC Power Supply: +5V, ±12V, Variable DC Power supply of 0 to +15V & 0 to –15V, - AC Power Supply of 18V-0-18V

( DTK-03B ) - On board Resistor Bank, Capacitor Bank, Inductor Bank. - On board Transistors NPN-BC547,SL100,PNP-BC558,SK100, JFET 2N3819, MOSFET BS170, DIAC,DB3, UJT 2N6027, SCR TYN612, TRAIC BT136, Diodes 1N 4007 (4 Nos.), Diode 1N4148,Diode OA79, Zener Diodes 1.2V, 5.1V, 12V, On board 12V SPDT Relay Thermistor, Photodiode & LDR., 8ohm Speaker, five mm LED, Voltage regulators one each IC-7805, 7905, Potentiometer (2 No’s) - On board Two Input Switches & Two Output Led Indicator - Fixed DC Power Supply: ±15V, Variable DC Power supply of 0 to +15V & 0 to 30V, - AC Power Supply of 18V-0-18V.

( DTK-03C ) - On board Resistor Bank, Capacitor Bank, Potentiometer (2 Nos) - On board two numbers of OPAMP, Timer Using 555, Voltage Comparator using IC710,PLL using IC565 & IC566, Opto using MCT2E, Regulator using 7805, 7905, LM317, LM337, LM723, - On board 2 numbers of 16 Pin Socket. One Led output indicator. - Provides Sine output waveforms with frequency & amplitude adjustment. - In built fixed DC Power Supply: +5V, ±12V, Variable DC Power supply of 0 to +15V & 0 to –15V, - AC Power Supply of 18V-0-18V

( DTK-04 ) - Sine, Square and Triangular Generator upto 100Khz - Analog DC Voltage & Current Meter - Bread Board of 1660 tie points - Fixed DC, Variable DC, AC power supply. - All interconnections are made using 2mm banana Patch cord.

( DTK-06 ) - 8 Logic Level Inputs & 10 Dual LED for output indication. - Push Switches, Potentiometers of 1K, 10K 100K, 1M - Bread Board of 2520 tie points - Sine, Square and Triangular output waveform from 0-100Khz. - Analog Current Panel Meter. - Resistor & Capacitor Bank (Electrolytic & Ceramic) - Fixed DC, Variable DC, AC power supply. - All interconnections are made using 2mm banana Patch cord.

( DTK-08 ) - 10 Logic Level Inputs & 16 LED for output indication. - Fixed Clock generation of 1Hz, 10Hz, 100Hz, 1KHz, 10KHz, 100KHz & 1MHz. - Logic Pulsar (2nos), Logic Probe, Reset Switches, Relay, Potentiometers - 4 digit BCD to 7 Segment Display - Bread Board of 1660 tie points - CPLD for designing Combination & Sequential Logics. - Fixed DC, Variable DC power supply. - All interconnections are made using 2mm banana Patch cord.

( DTK-08A ) - 16 Logic Level Inputs & 16 LED for output indication. - Fixed Clock generation of 1Hz, 10Hz, 100Hz, 1KHz, 10KHz, 100KHz & 1MHz. - Logic Pulsar, Logic Probe, Relay, Potentiometers - 4 digit BCD to 7 Segment Display - Bread Board of 2490 tie points - Fixed DC, Variable DC power supply. - All interconnections are made using 2mm banana Patch cord.

( DTK-09 ) - 16 TTL/CMOS Logic Level Inputs Switches, 16 LED Indicator for output. - On board Logic Pulser, Logic Probe, Two No’s of BCD Seven Segment Display - On board 830 tie point’s bread board, Fixed Clock generation. - 20 Pin Base Socket :- 1 No, 16 Pin Base Socket :- 4 No’s - In built fixed DC Power Supply: +5V, ±12V

( DTK-10 ) - 16 TTL/CMOS Logic Level Inputs Switches, 16 LED Indicator output. - On board Logic Pulser, Logic Probe, Two BCD Seven Segment Display, One Seven Segment Display - On board 1660 tie points bread board. - 200Khz Sine, Square and Triangular generator, Fixed Clock generation - In built fixed DC Power Supply: +5V, ±12V, Variable DC supply of 0 to ±15V, - AC Power Supply of 18V-0-18V

( DTK-24 ) - 16 TTL/CMOS Logic Level Inputs Switches, 16 Dual LED Indicator output. - On board Logic Pulser, Logic Probe, Two nos. of BCD Seven Segment Display - On board 1660 tie points bread board. - 1MHz Sine, Square and Triangular generator, Fixed Clock generation - In built fixed DC Power Supply: +5V, ±12V, Variable DC supply of 0 to ±15V, - AC Power Supply of 18V-0-18V

( KMS-01 ) - 16 TTL/CMOS Logic Level Inputs Switches, 16 LED Indicator for output. - On board Dual Logic Pulser, Logic Probe, Two nos. of Hex Seven Segment Display - On board 1660 tie points bread board, 2 numbers of seven segment display. - 200Khz Sine, Square and Triangular generator, Fixed Clock generation - On board LED BAR graph, Potentiometer (2 Nos), Buzzer, 12V SPDT Relay. - On board DPM (4 no) provided with mode selection: DC volt/current. - In built fixed DC Power Supply: +5V, ±12V, Variable DC Power supply of 0 to +15V, 0 to –15V & 0 to 30V, - AC Power Supply of 15V-0-15V - Support AN/DN/KMS-XX series ready to use experimental modules.

( KMS-01D ) - 16 TTL/CMOS Logic Level Inputs Switches, 16 LED Indicator for output. - On board Dual Logic Pulser, Logic Probe, Two nos. of BCD Seven Segment Display - On board 1660 tie points bread board, 6 numbers of potentiometer. - 200Khz Sine, Square and Triangular generator, Fixed Clock generation - On board DPM (4 no) provided with mode selection: DC volt/current. - In built fixed DC Power Supply: +5V, ±15V, Variable DC Power supply of 0 to +30V, 0 to –30V, - AC Power Supply of 0-10-15V-20-30V - Support AN/DN/KMS-XX series ready to use experimental modules.

( KMS-01E ) - 10 TTL/CMOS Logic Level Inputs with Dual Color LED for Logic Low & Logic High. - 10 output Dual Colour LED’s Logic Level Indicators. - Clock Generator Fixed (TTL) 1Hz-10MHz in multiple of 10 - Function Generator variable from 1Hz to 1 MHz in SIX steps. - Pulse Generator – 2 No’s - Two digit 7 segment display with BCD to 7 segment decoder. - Digital Panel Meter (4 no) provided with mode selection & Analog AC Voltmeter & Ammeter - Fixed DC Power Supply: +5V/1A, ±12V/1A. - Variable DC Power supply 0 to +30V/100mA, 0 to +30V/100mA & 15V to 110V/100mA output isolated - Onboard Two BNC channel banana adapter. - On-board 8 Ohms / 0.5W Speaker - All Inputs/Outputs are brought on sturdy 2mm banana Sockets - Support AN/DN/KMS-XX series ready to use experimental modules.

( KMS-01EN ) - 10 TTL/CMOS Logic Level Inputs with Dual Color LED for Logic Low & Logic High. - 10 output Dual Colour LED’s Logic Level Indicators. - Clock Generator Fixed (TTL) of 10MHz - Function Generator variable from 1Hz to 1 MHz in SIX steps. - Pulse Generator – 2 No’s - Two digit 7 segment display with BCD to 7 segment decoder. - Digital Panel Meter (3 no) provided with mode selection & Analog AC Voltmeter & Ammeter - Fixed DC Power Supply: +5V/1A, ±12V/1A. - Variable DC Power supply 0 to +15V/100mA, 0 to +30V/100mA & 15V to 110V/100mA output isolated - Onboard Two BNC channel banana adapter. - On-board 8 Ohms / 0.5W Speaker - All Inputs/Outputs are brought on sturdy 2mm banana Sockets - Support AN/DN/KMS-XX series ready to use experimental modules.

( KMS-03 ) - 10 Logic Level Inputs & 10 LED for output indication. - Fixed Clock generation of 1Hz, 10Hz, 100Hz, 1KHz, 10KHz, 100KHz & 1MHz. - Logic Pulsar, Logic Probe, Potentiometers, 2 digit BCD to 7 Segment Display - 100Khz Sine, Square Wave form generator - 96 Pin Euro Connector based Bread Board of 1280 tie points - Fixed DC, Variable DC, power supply. - 96 Pin connector based Ready to use board for Digital, Analog, communication boards - Support AN/DN/KMS-XX series ready to use experimental modules.

( KMS-05 ) - 8 Logic Level Inputs & 8 LED for output indication. - Fixed Clock generation of 1Hz, 10Hz, 100Hz, 1KHz, 10KHz, 100KHz & 1MHz. - Two differential channels Input with 30 MHz bandwidth, 14-bit resolution having +/-25 V input range. - Two channels Arbitrary Output with 12 MHz bandwidth, 14-bit resolution having +/-5 V output range.
