PRODUCT SUMMARY

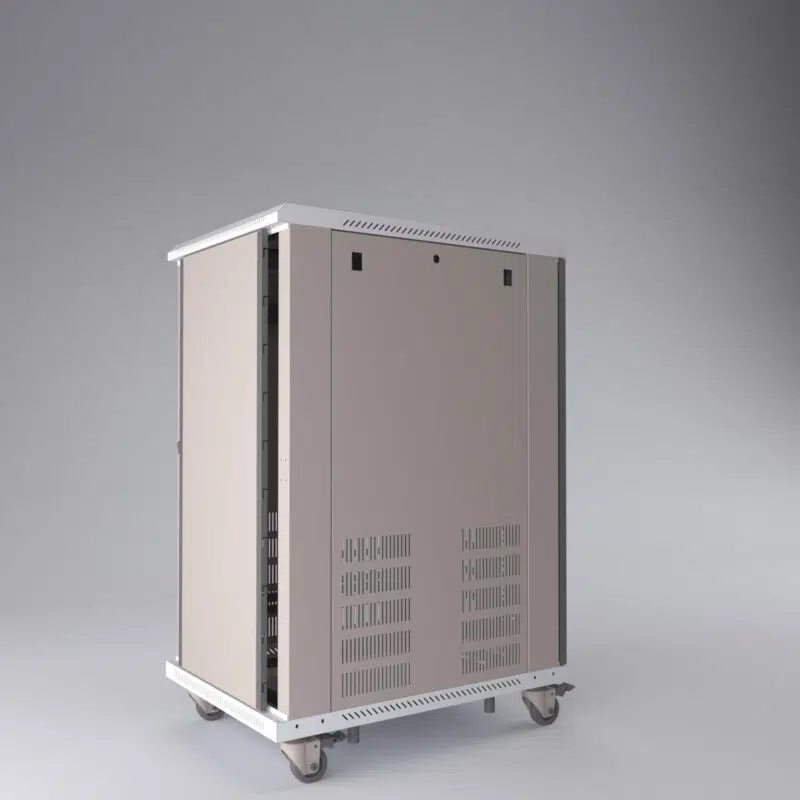

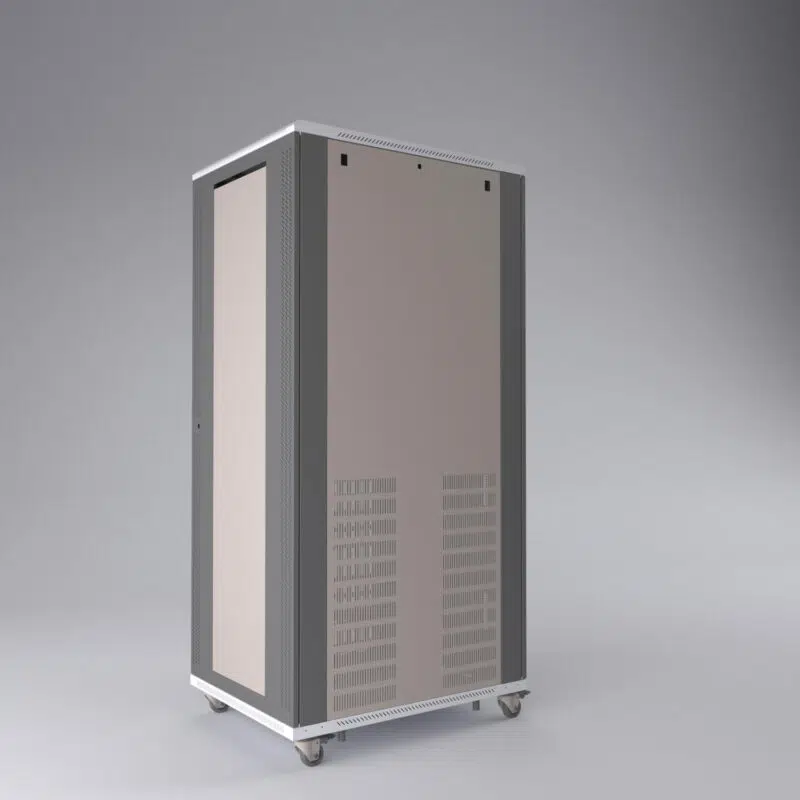

Machwel Floor Standing Steel Enclosure is designed for Servers, Networking, Data Centers, Audio Video, Telecom
and Lab applications. Enclosures are fabricated out of CRCA steel, CNC programmed, punched, bended, welded and Powder coated with highest quality standards.
Configuration for standard Racks is welded frame with 4 pillars of Multi Fold profile welded to top and bottom panels. 2 Pair Depth rails to additionally support the Enclosure. Removable side panels partially vented for better air circulation. Openings/Cut outs for field cable entry from Top & Bottom of the Rack. Vented top cover with fan mounting provision, Front Glass or perforated Metal door with lock and key. Back Vented, perforated or perforated Dual metal door with lock and key. Free Floor standing Design with 4 No. castor wheels 2 no’s with breaks and 2 no’s without breaks. Levelers or Plinth can be provided on request.
Racks are available in 17U to 42U Variants with 650mm/800mm/1000mm deep configuration and 600 and 800 width configurations.
TECHNICAL DATA
Rack Standard: Conforms to DIN 41494 or equivalent standard.
Construction: Welded OR CKD (Knock Down)
Front Door: Lockable Toughened Glass Door,
Rear Door: Vented Steel Dual Door
Basic Frame: Steel
Equipment Mounting: DIN Standard 10mm Sq. Slots / Direct M6 Tap
Mounting Angle: 19″ Mounting angles made of formed steel.
Standard Finish: Powder Coated
Top and Bottom Cover: Welded to Frame, Vented and Field Cable entry exit cut outs.
Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or Levelers or Base plinth
Standard Color: Black or Grey
