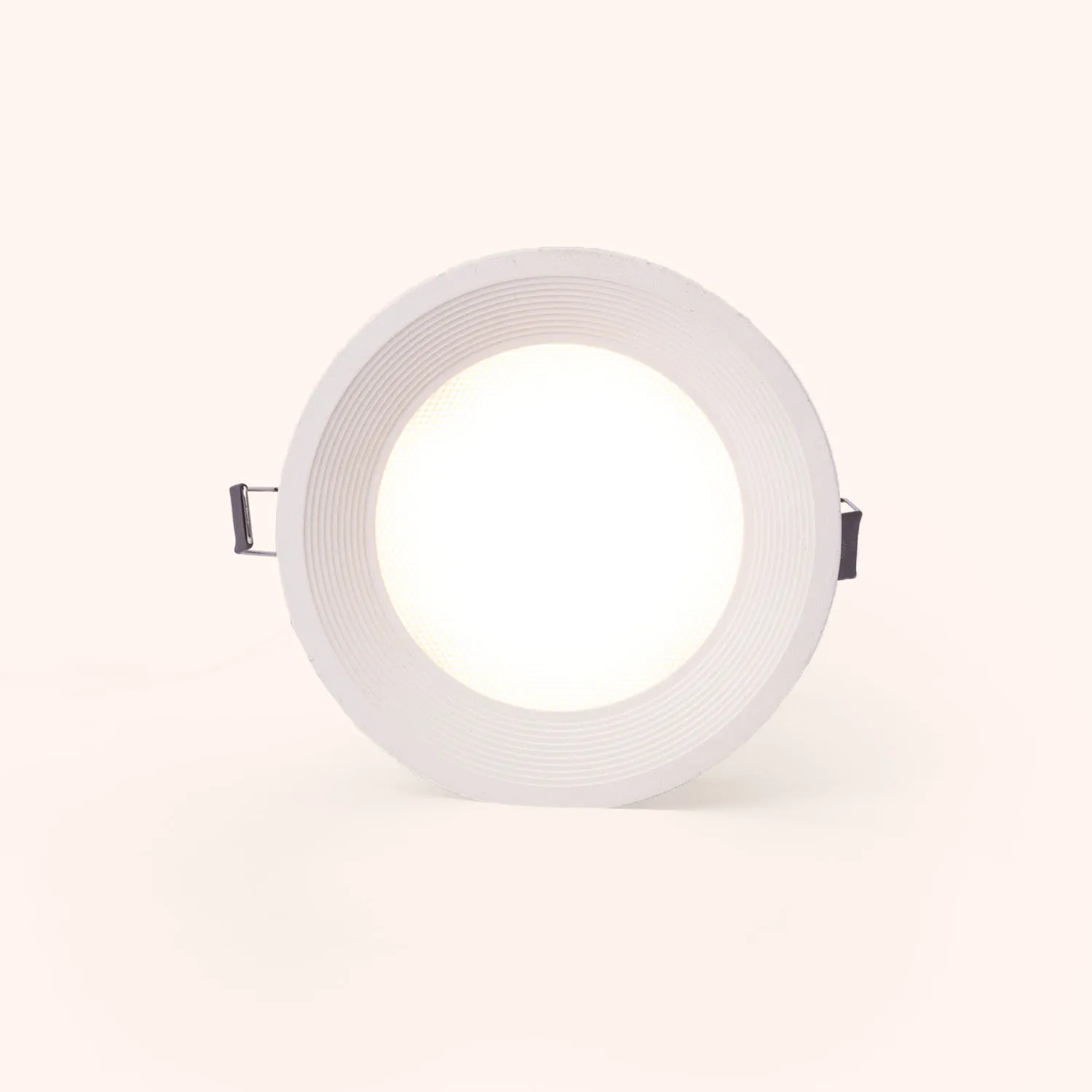

SWANK DR LR DL1017 (Deep Recessed Low Glare Downlight 7/12/15W)

Name: SWANK DR LR DL1017 (Deep Recessed Low Glare Downlight 7/12/15W)
Brand: ARRAYSTORM LIGHTING PRIVATE LIMITED

ARRAYSTORM LIGHTING PRIVATE LIMITEDBangalore, KA

Storefront

Anchored to the MCA registerCIN U31503KA2013PTC071934

Price on request. Ask the factory for a quote.

MOQ not declared by manufacturerLead time not declared by manufacturerCurrency INR

Key attributesAll specs

Place of origin

Bangalore, KA, India

THD

<10%

Housing

Body – Die Cast ALUMINIUM

Directional

DIRECT

WATTAGE (w)

Description

The Arraystorm Swank DR LR -15W SERIES is a Deep Inset, Low Glare recess mounted LED downlight for office, school, hospital, retail and other commercial applications. The uniform luminance across the diffuser generates a soft, voluminous light. The deep Inset and Stepped Housing reduces the Glare. The Aesthetic Design offers a unique effect. The high efficiency chip and robust drivers give a long life to the product.

Key attributes

Place of origin	Bangalore, KA, India
THD	<10%
Housing	Body – Die Cast ALUMINIUM
Directional	DIRECT
WATTAGE (w)	15
Power Factor	>0.95
Product Code	DL1017RFXXN015N000000054
Nominal Lumen	100
Efficacy (Lm/W)	135
Protection Class	CLASS II
Surge Protection	2.5KV
Luminous Efficacy	can be given higher based on customer requirements and will vary based on color temperature
Operating Voltage	150 V – 270V
Ambient Conditions	-10 – 45 DEGREE
Cut Out L \| W (mm)	130
Operating Frequency	50 Hz
Dimension DIA \| H (mm)	62
For Dali/Analog Or Special Drivers	can be given
Tolerance For Electrical Parameters	+/-10%
Tolerance For Mechanical Parameters	+/-5mm
For Ordering Replace XX – Of Code With Correct LED Color	30- 3000K \| 40-4000K \| 57-5700K
