Swank S DL0100X165H (Surface 100X165-15/18/24/30W)

ARRAYSTORM LIGHTING PRIVATE LIMITEDBangalore, KA

Storefront

Anchored to the MCA registerCIN U31503KA2013PTC071934

Price on request. Ask the factory for a quote.

MOQ not declared by manufacturerLead time not declared by manufacturerCurrency INR

Key attributesAll specs

Place of origin

Bangalore, KA, India

THD

<10%

Efficacy

100

Directional

DIRECT

WATTAGE (w)

Description

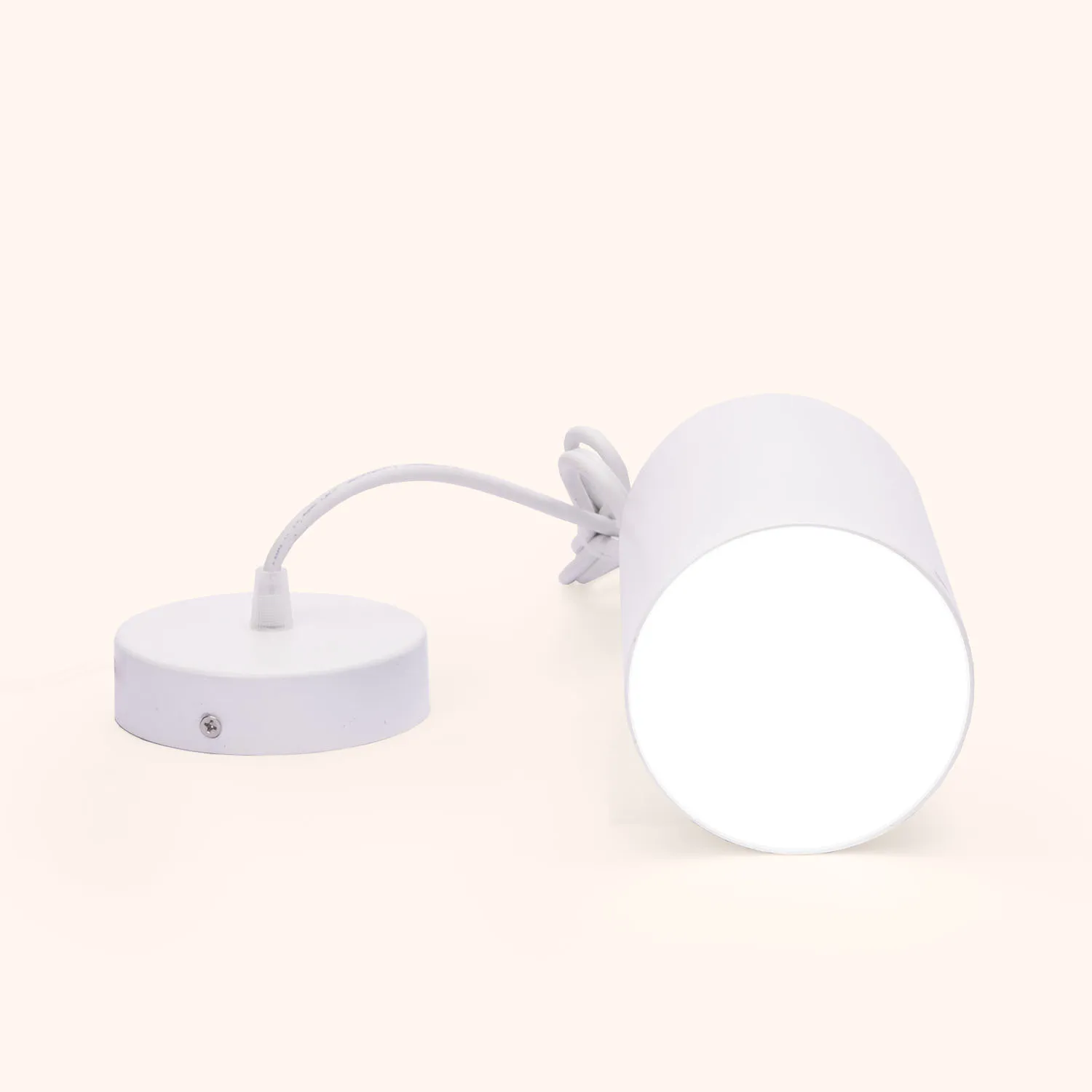

The Arraystorm Swank Surface 100X165 SERIES is a surface/ Suspended mounted or suspended LED downlight for office, school, hospital, retail and other commercial applications. The uniform luminance across the diffuser generates a soft, voluminous light. The Aesthetic Design offers a unique effect. The high efficiency chip and robust drivers give a long life to the product.

Key attributes

Place of origin	Bangalore, KA, India
THD	<10%
Efficacy	100
Directional	DIRECT
WATTAGE (w)	15
Power Factor	>0.95
Product Code	DL0100FFXXN015N165000000
Nominal Lumen	100
Protection Class	CLASS II
Surge Protection	2.5KV
Luminous Efficacy	can be given higher based on customer requirements and will vary based on color temperature
Operating Voltage	150 V – 270V
Ambient Conditions	-10 – 45 DEGREE
Operating Frequency	50 Hz
Dimension L \| W (mm)	100 \| 165
DL0100FFXXN018N165000000	18
DL0100FFXXN024N190000000	24
DL0100FFXXN030N190000000	30
For Dali/Analog Or Special Drivers	can be given
Tolerance For Electrical Parameters	+/-10%
Tolerance For Mechanical Parameters	+/-5mm
