Line Boring Machine

Name: Line Boring Machine
Brand: EUROTECH GLOBAL SOLUTION INDIA PRIVATE LIMITED
Availability: MadeToOrder

Certificates:ISO 9001:2015

EUROTECH GLOBAL SOLUTION INDIA PRIVATE LIMITEDCoimbatore, TN

Storefront

Anchored to the MCA registerCIN U29253TZ2010PTC016116

Price on request. Ask the factory for a quote.

MOQ not stated Lead time on requestCurrency INR

Key attributesAll specs

Highlights at a glance

Category: Machineries
Made in Coimbatore, TN, India
Certified: ISO 9001:2015

About this item

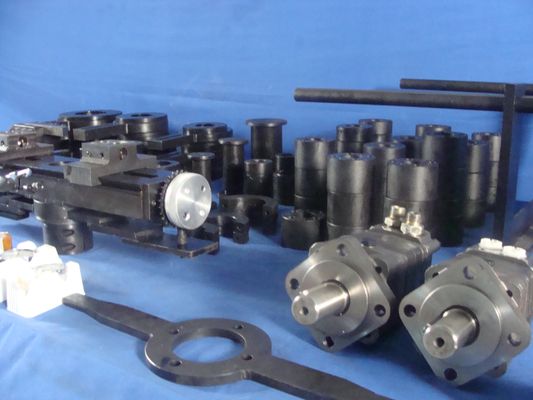

Hydraulic motor and power pack provide smooth drive power with high torque over a wide speed range, ideal for difficult cutting conditions.
Low weight at the driven end of the boring spindle compared to direct electric drive.
Power pack with heat exchanger allows for continuous operation for longer periods.

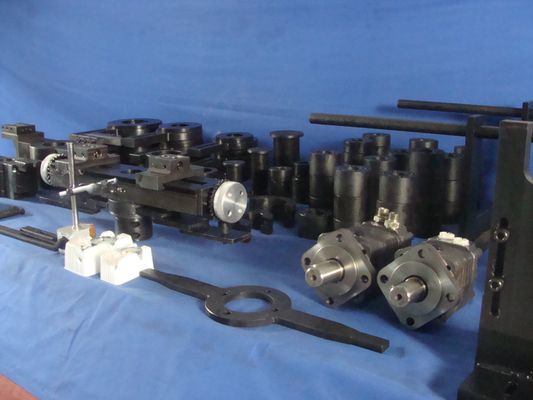

Versatile fixtures for easy handling and centering, minimizing assembly time.
Feed unit capable of fine feeds for very fine surface finish, with unrestricted feed length.

Description

The line boring machine developed by Eurotech is capable of achieving a high degree of accuracy and at the same time, it is easy to use over a wide range.
The machine is portable and is ideally suited for use onboard ships or in engine installation sites or even in processing plants where boring is required to be done In-Situ.
The line boring machine has been put to test at actual operation on several occasions and it has been proved time and again that boring to a close dimensional tolerance is easily achieved with this machine.

Description

The line boring machine developed by Eurotech is capable of achieving a high degree of accuracy and at the same time, it is easy to use over a wide range.
The machine is portable and is ideally suited for use onboard ships or in engine installation sites or even in processing plants where boring is required to be done In-Situ.
The line boring machine has been put to test at actual operation on several occasions and it has been proved time and again that boring to a close dimensional tolerance is easily achieved with this machine.

Features

The hydraulic motor and power pack gives smooth drive power with high torque over a wide range of speed. This is ideal requirement for difficult cutting conditions where the hardness of the material or condition of damage makes it impossible to set a high speed. The even power given throughout the operation by the hydraulic power pack helps in getting a very fine surface finish.
More importantly at the point of drive, that is at the driven end of the boring spindle, the weight is very less when compared to direct electric drive. As the power pack is provided with heat exchanger it can be continuously run for longer periods.
The different type and range of fixture provided with the machine helps in setting up the machine according to site requirements. Even an intentional offset can be made to the centerline as per the requirement of situation and application. In case of boring operation where alignment of bore are not under close tolerance a simple centering fixture can be used.
The Feed unit and tool holder of the machine are unique and helps in achieving close control of operation, accuracy and surface finish.
The feed unit for the line-boring machine is a special type, which can be used for manual feed as well as auto-feed. The feed unit is capable of giving very fine feeds which help in attaining very fine surface finish. Another important feature of the feed unit is that the feed length is not restricted with the feed unit length.

Specifications

Feed unit: the feed unit is capable of giving fine feeds which help in attaining a very fine surface finish.

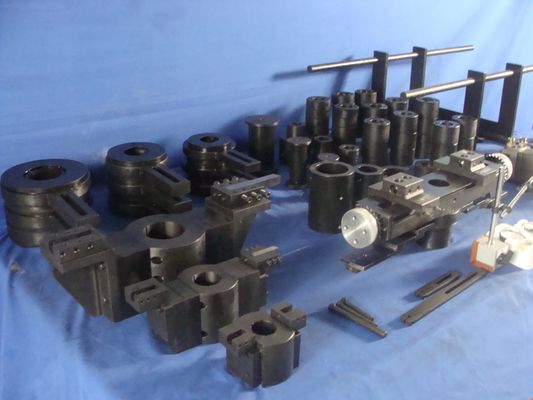

Fixtures: can be easily handled and centered thereby keeping assembly time to a minimum. Special fixtures according to requirement can be provided.

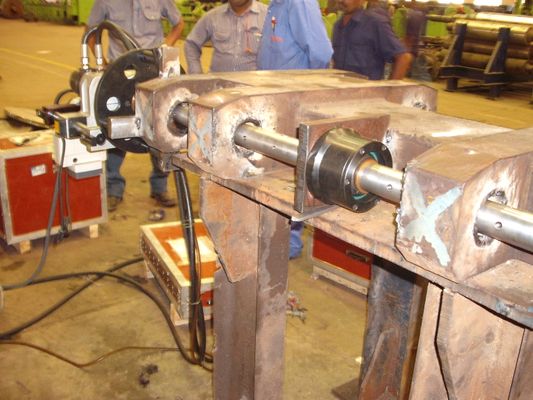

Model: LBM 70-150 these machines are ideally suited for use on equipment like earth movers or even in processing plants where boring is required to be done in-situ boring diameter range:70mm to 150mm
Boring Range    : 70mm to 150mm
Boring Spindle Diameter    : 50mm
Drive for Boring Spindle    : Hydro drive
Drive for Feed    : Power feed unit. 90W,
Boring Spindle Speed    : 20 rpm to 120 rpm
Feed rate    : variable
Input Electrical Connection    : 3Phase, 415 V, 50Hz

Model: LB 40-80 the machine is portable and ideally suited for heavy duty application in the engine block, marine applications & process plants boring diameter range: 150mm to 800mm
Boring Range (Diameter)    : 150mm to 800mm
Boring Spindle Diameter    : 40mm, 50mm & 80mm
Drive   for Boring Spindle    : Hydro drive
Drive for Feed    : AC drive. 90W
Boring Spindle Speed    : 10 rpm to 170 rpm variable
Feed rate    : Variable -0.07mm/rev to 0.8mm/rev
Input Electrical Connection    : 3 Phase, 415V, 50 Hz

Optional   accessories:
Facing attachment
Special fixtures as per required specification
Power feed for LB 70-150

The Drives are customizable according to customer requirements.

Applications

Line boring machines primary application is for boring of two or more bores in a straight line. To maintain the concentricity of the bores and accuracy of the bore dimension.
The machine can be used for the repair of a damaged bore or in machining a new bore during the erection of machines or structures.
Re-machining of damaged main bearing housing in diesel engines, camshaft bearing housings
Repair and re-machining of bearing housings in Vertical Raw mills
Repair and re-machining of bearing housings of rollers in steel, sugar, paper plants
Ship repair and ship building
Backhoes, Loaders, End Loaders, etc
