About this item
Power feed for X and Y axis with digital power controller for efficient milling and consistent fine surface finish.
Modular and extendable machines adaptable to available space constraints.
Pneumatic and hydraulic drives for high spindle torque and minimum weight at the operating point.
Combination of high-powered hydraulic drives and heavy-duty spindles for rapid surface milling.
Customizable with provisions like tilting facility, grinding head, drilling attachment.
Description

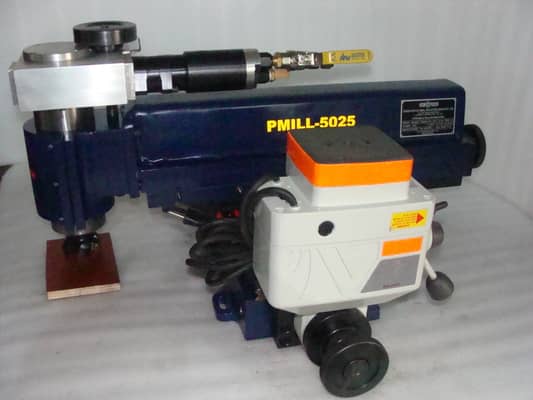

Our Portable Milling machines are designed and manufactured for rugged on-site machining operations with high accuracy. 3-axis Milling machines and 2-axis milling machines with the versatile capability to suit the most exacting operating conditions.
The machine is modular and extendable as a result, the machine can be set up and used in areas with restricted access.
Customized configuration of the machine helps customers to choose machines suitable for their requirements and application.
Description
Our Portable Milling machines are designed and manufactured for rugged on-site machining operations with high accuracy. 3-axis Milling machines and 2-axis milling machines with the versatile capability to suit the most exacting operating conditions.
The machine is modular and extendable as a result, the machine can be set up and used in areas with restricted access.
Customized configuration of the machine helps customers to choose machines suitable for their requirements and application.
Features
Power feed for the X and Y axis with digital power controller results in efficient milling operation and consistent fine surface finish.
The Machines can be modular and extendable, so can be modified and used according to available space constraints.
The use of pneumatic and hydraulic drives for the milling head results in high spindle torque for milling at the same time keeping the weight at the operating point to a minimum.
A combination of high-powered hydraulic drives and heavy-duty spindles helps in the rapid milling of surfaces.
The machine can be made to specific requirements with additional provisions like tilting facility to required angle, grinding head, drilling attachment, etc
Specifications
Types of portable milling machines:
1. Linear milling machine
Linear Milling Machines have one longitudinal guideway with a cross slide of limited stroke and tool feed on Z-axis
Longitudinal Stroke length - 500mm to 3000mm
Cross Slide stroke length - 200mm
Z-axis tool feed - 150mm

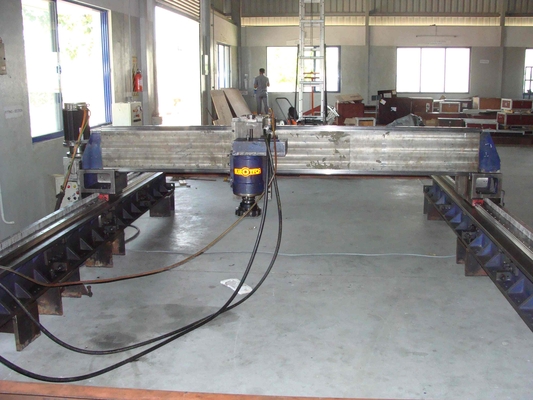

2. Gantry type milling machine
Gantry-type milling machines have two guideways for longitudinal travel and a crossway between the two longitudinal guideways on which the milling head moves during operation. Travel along the X, Y, Z axis can be configured to specific requirements.
Machines can be made according to customer requirements from 1000mmX500mm to 20000mmX6000mm
Options of power feed and Servo controls for X, Y, and Z- axes are available.
Applications
Gear box mounting bases
Weapon & missile mounting base machining
Sonar dome seat machining
Pump and compressor mounting bases
Any large flat surfaces requiring machining
